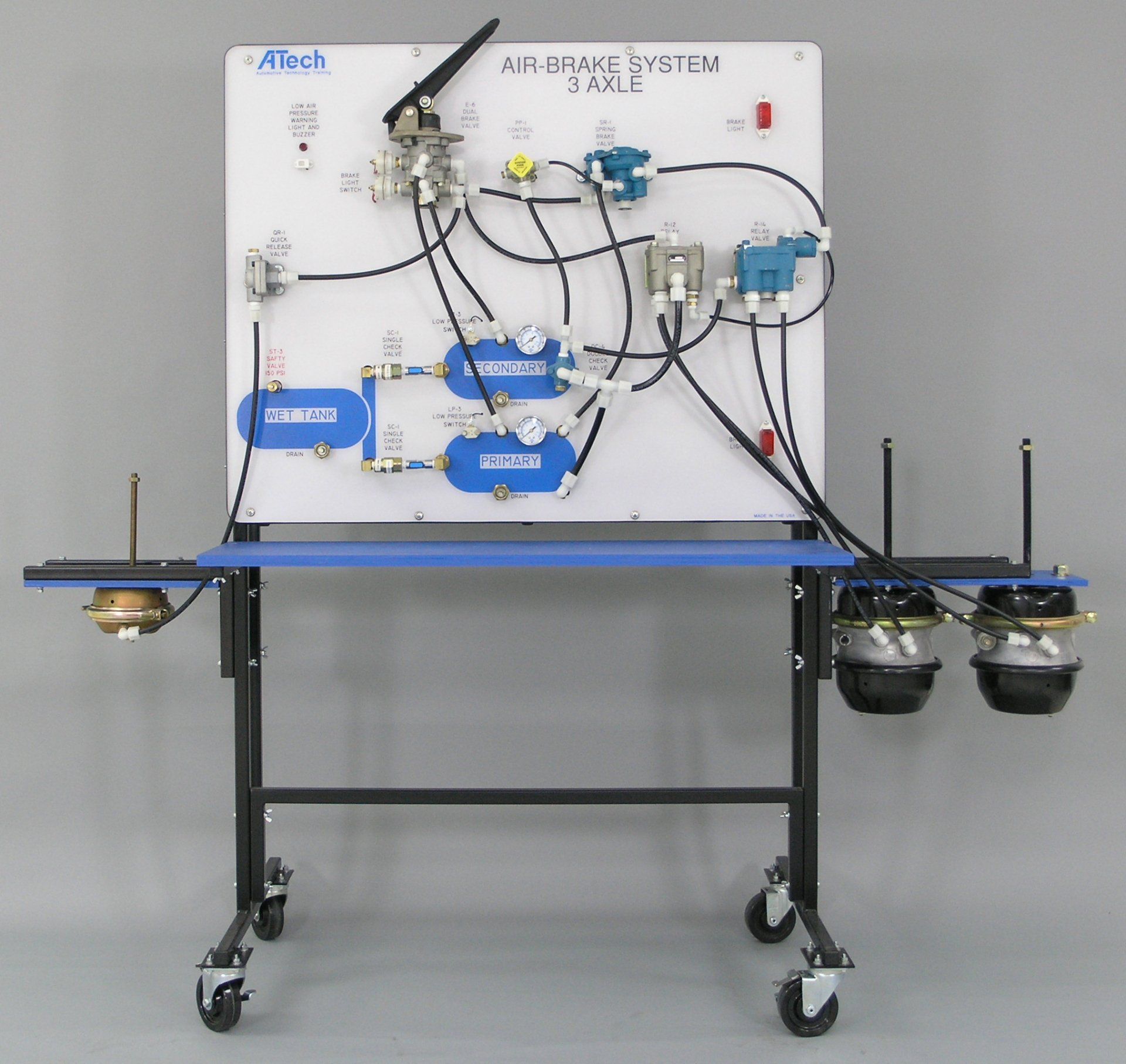

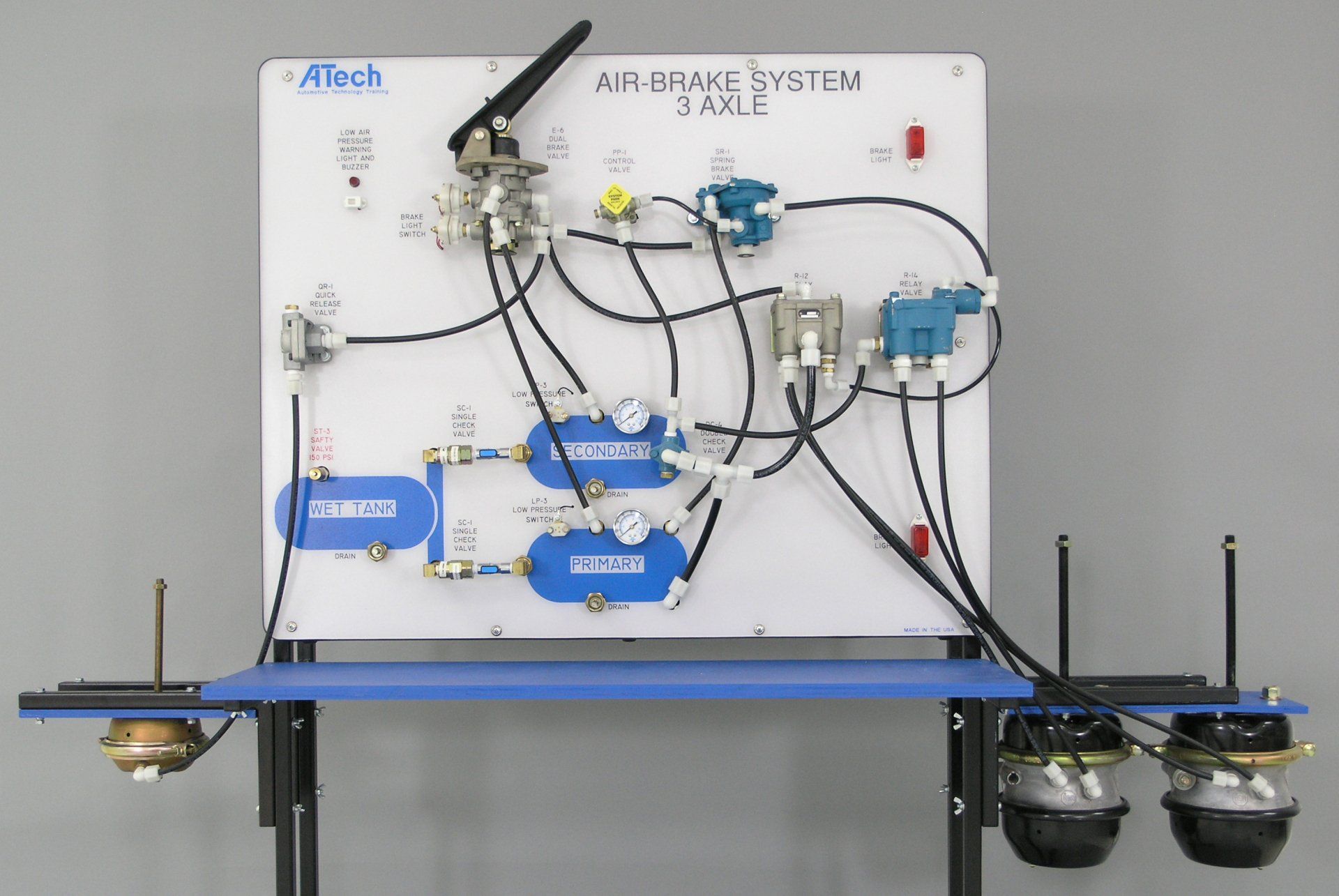

3 Axle Air Brake System Trainer

Model 6430

This trainer presents the “real world” operation and study of a 3 Axle Air Brake System. The trainer is capable of duplicating actual on-vehicle problems. The program provides courseware for use by students and instructors.

• Low Pressure Warning Light and Buzzer
• Brake Light Switch
• E-6 Dual Brake Valve
• PP-1 Control Valve
• SR-1 Spring Brake Valve
• R-12 Relay Valve
• R-14 Relay Valve
• QR-1 Quick Release Valve
• ST-3 Safety Valve
• SC-1 Single Check Valve (2)
• LP-3 Low Pressure Switch (2)
• DC-4 Double Check Valve
• Drain Valve - Manual (3)
• Gauge (2)
• Spring Brake
• Service Brake Chamber (2)
• D.O.T. Air Brake Lines
