This trainer is intended to provide instructors the flexibility to not only create their own circuits but to develop the corresponding measurement and diagnostic procedures as needed for Electricity, PWM, and Faulting.

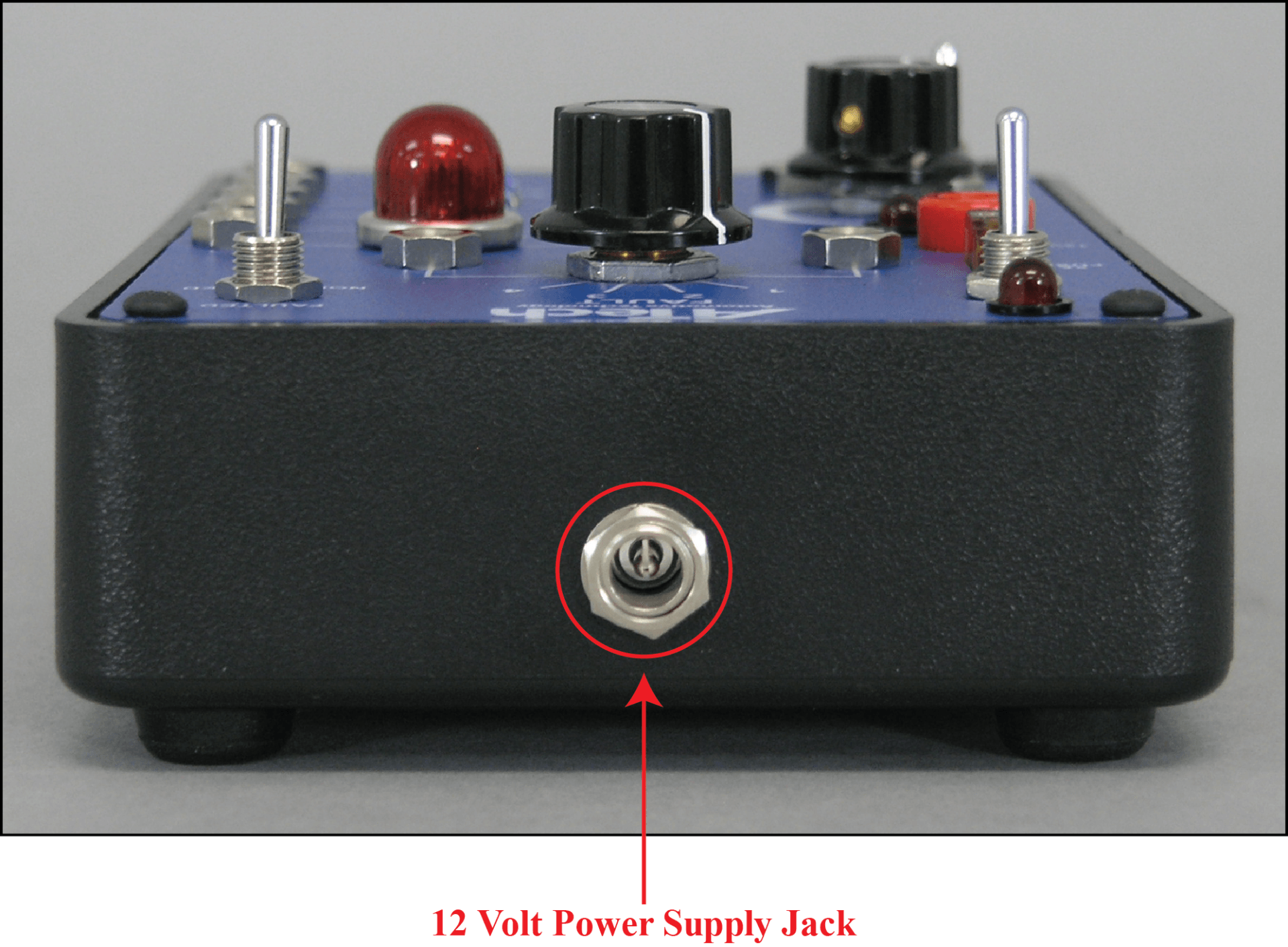

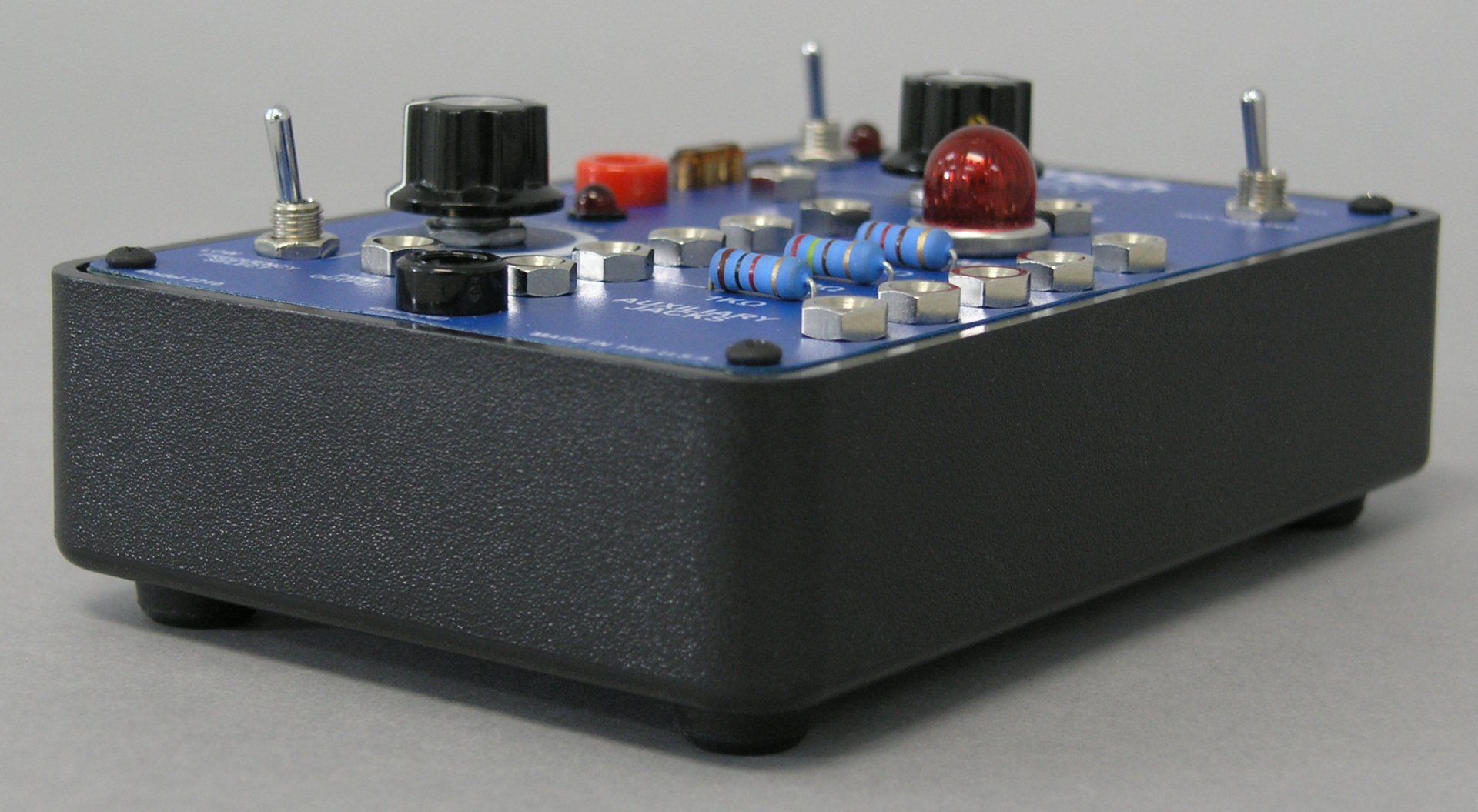

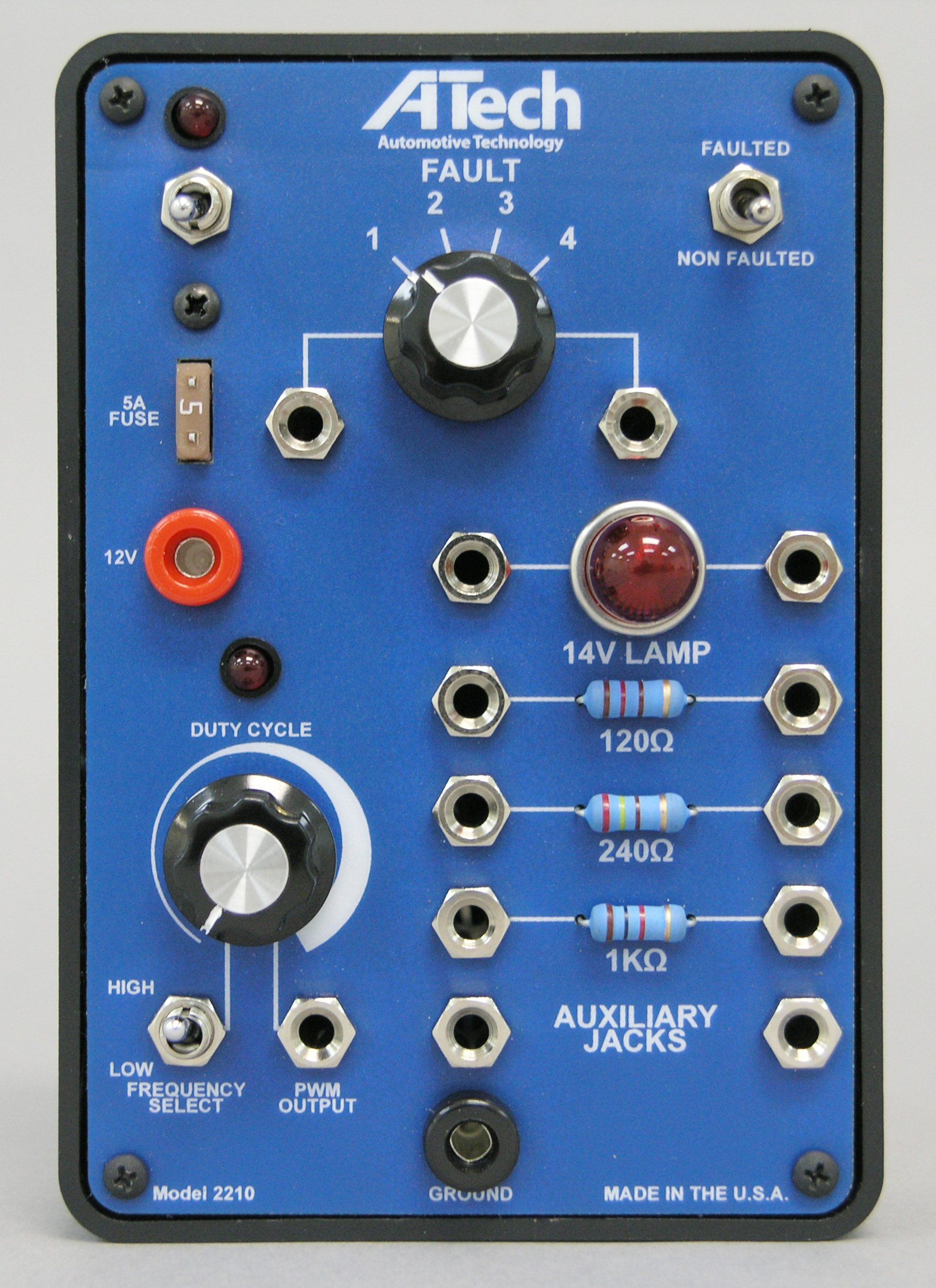

The Electrical/PWM/Fault Trainer is designed to  introduce the concepts of Electrical Fundamentals, Pulse Width Modulation (PWM) Actuator Control, and Fault Diagnosis. The trainer is compact, self-contained, and provides a PWM output to view the signal on an oscilloscope.
