CPU 3800 Series Software
Engine Control Software
Models 3610, 3620, 3630
In conjunction with our 3601 Trainer these programs enhance the learning experiences with animations of important concepts. Hands-on activities provide “need-to-know” reinforcement, while computer controlled diagnosis provides trouble-shooting practice and competency testing.

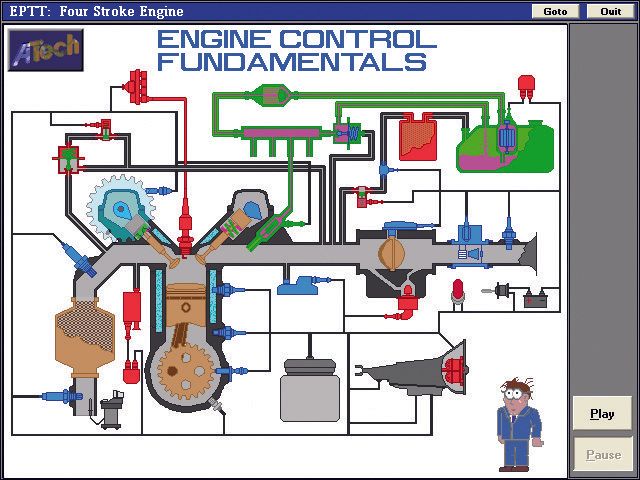

3610 Engine Control Fundamentals
Features 21 Activities:
- Four Stroke Engine
- Fuel System
- Fuel Pump
- Fuel Filter
- Fuel Rail
- Fuel Pressure Regulator
- Fuel Injector
- Fuel System Firing
- Crankshaft Sensor
- Camshaft Sensor
- Powertrain Control Module
- Intake Air Temperature
- MAF Sensor
- Throttle Position Sensor
- MAP Sensor
- Vehicle Speed Sensor
- Heated Exhaust Gas O2 Sensor
- Coolant Temperature Sensor
- Engine Knock Sensor
- Idle Air Control Valve
- Torque Converter Clutch Solenoid
3620 Engine Control Systems Operation Features 14 Activities:

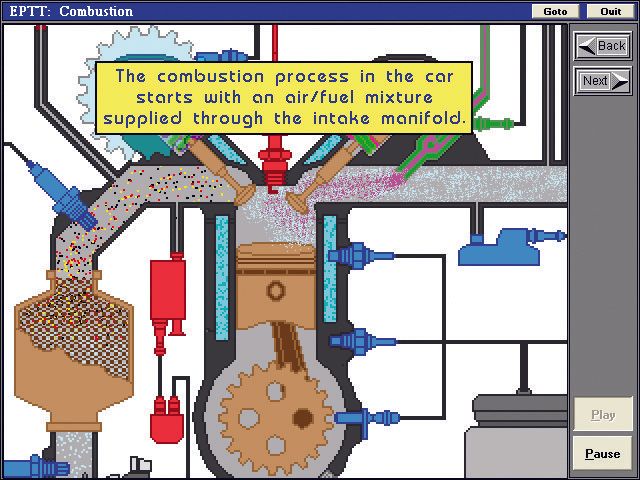

- Combustion
- TPS & Intake Air
- MAF & Intake Air
- Fuel Injector Pulse Width
- Oxygen Sensor & Closed Loop
- Crank Sensor & Spark Timing
- Spark Advance & Knock Sensor
- Cam Sensor & Injector Firing
- IAT & FIPW
- ECT, Cooling Fan & IAC
- Transmission: VSS, TCC & Shift Solenoids
- EGR System
- EVAP System
- SAIR System

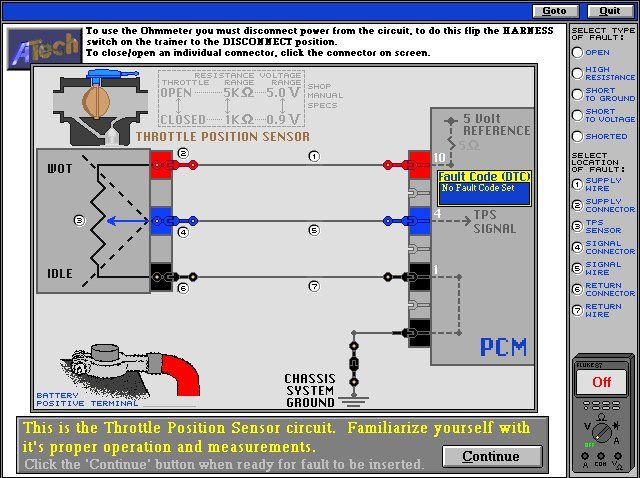

3630 Engine Control Diagnostic Fundamentals Features 15 Activities:
- Circuit Elements
- Digital Multi-Meter (DMM)
- Metric Prefixes
- Principle of Electrical Circuits: Current
- Principle of Electrical Circuits: Voltage
- Principle of Electrical Circuits: Resistance
- Principle of Electrical Circuits: OHM’s Law
- Series Circuit Characteristics
- Parallel Circuit Characteristics
- Series/Parallel Circuit Characteristics
- Electrical Circuit Faults: Open Circuits
- Electrical Circuit Faults: High Resistance
- Electrical Circuit Faults: Short to Ground
- Electrical Circuit Faults: Short to Voltage
- Using Shop Manual
