Fan Speed Control Trainer

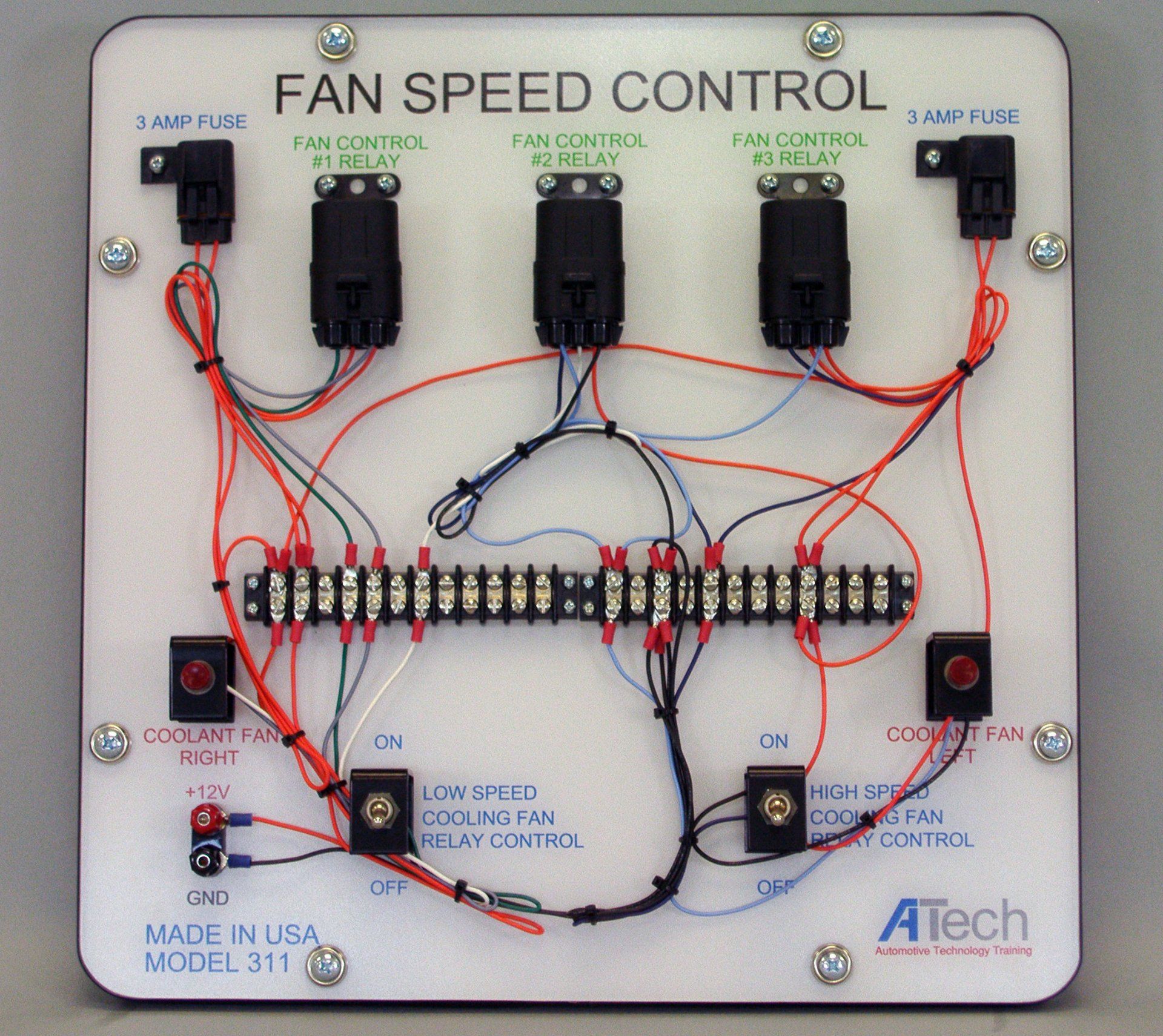

This trainer presents the hands-on construction, study and live operation of a Fan Speed Control System as found on late- model General Motors vehicles. Students follow printed schematics to wire up either a single speed single fan system or a two-speed two fan system. The trainer circuits use the same wire colors as the manufacturer’s wiring diagram. Incandescent bulbs are substituted for actual cooling fan motors for safety purposes.
