GM Motor Cutaway

GM Six-Cylinder Cutaway

Model 680

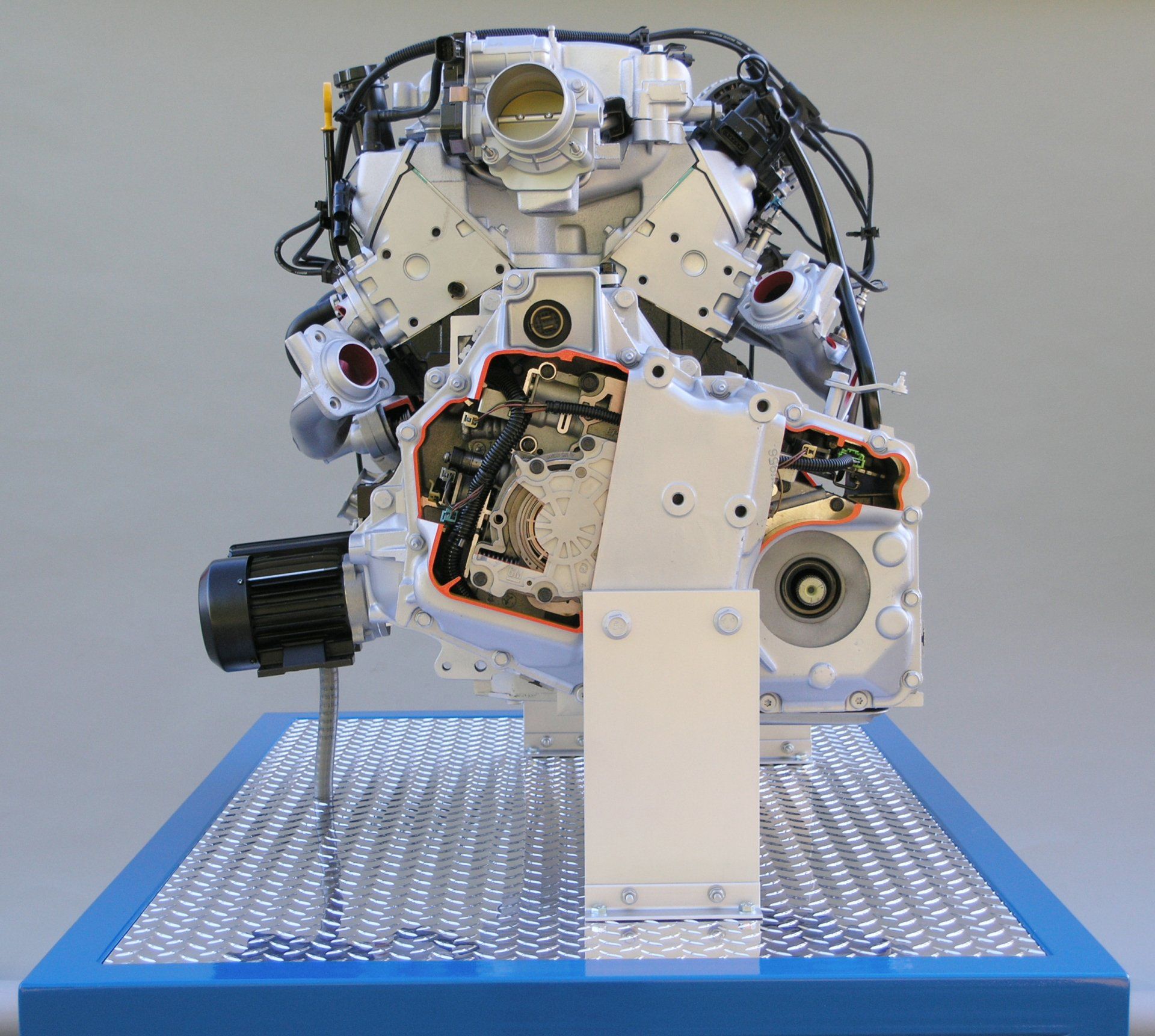

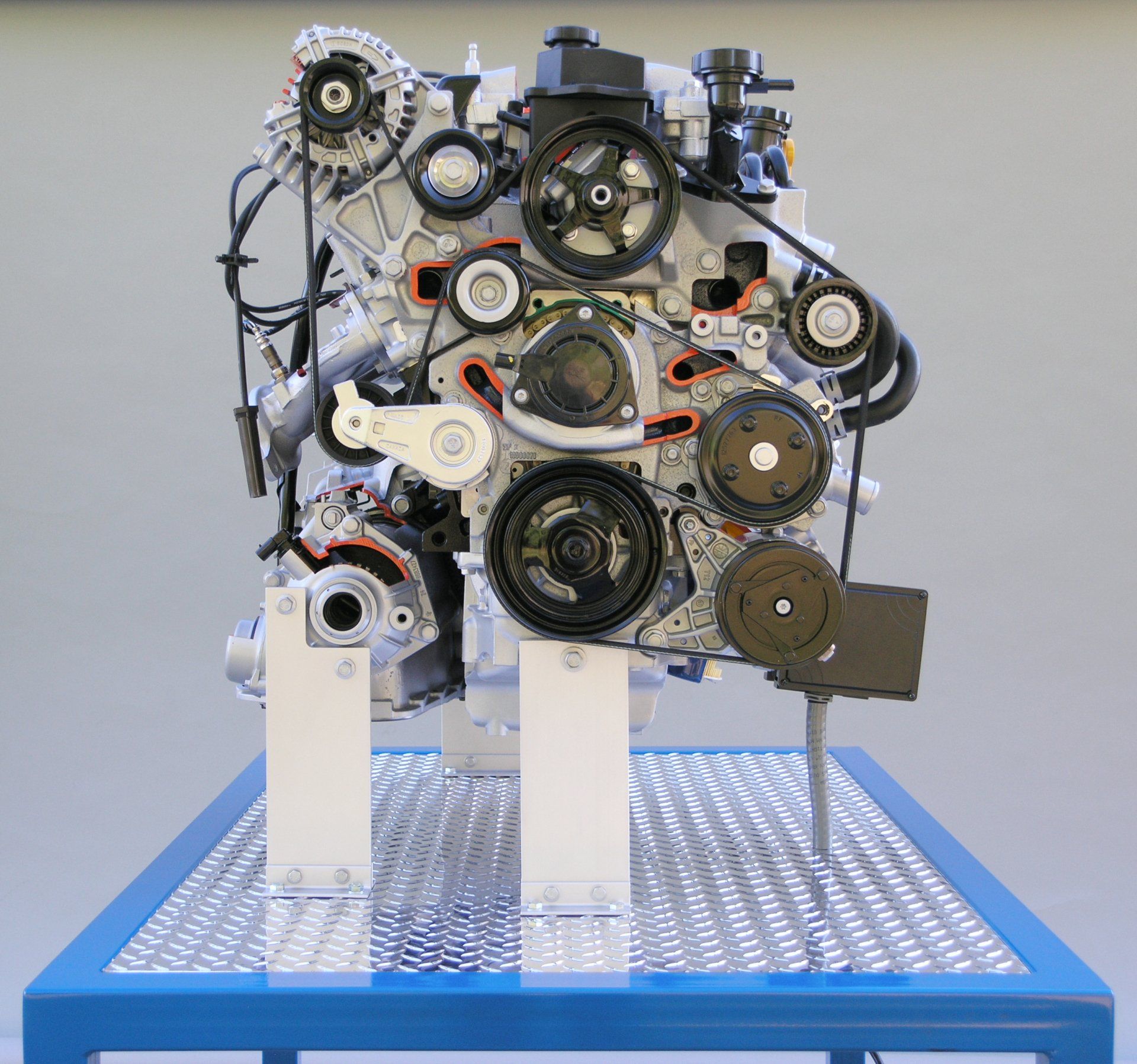

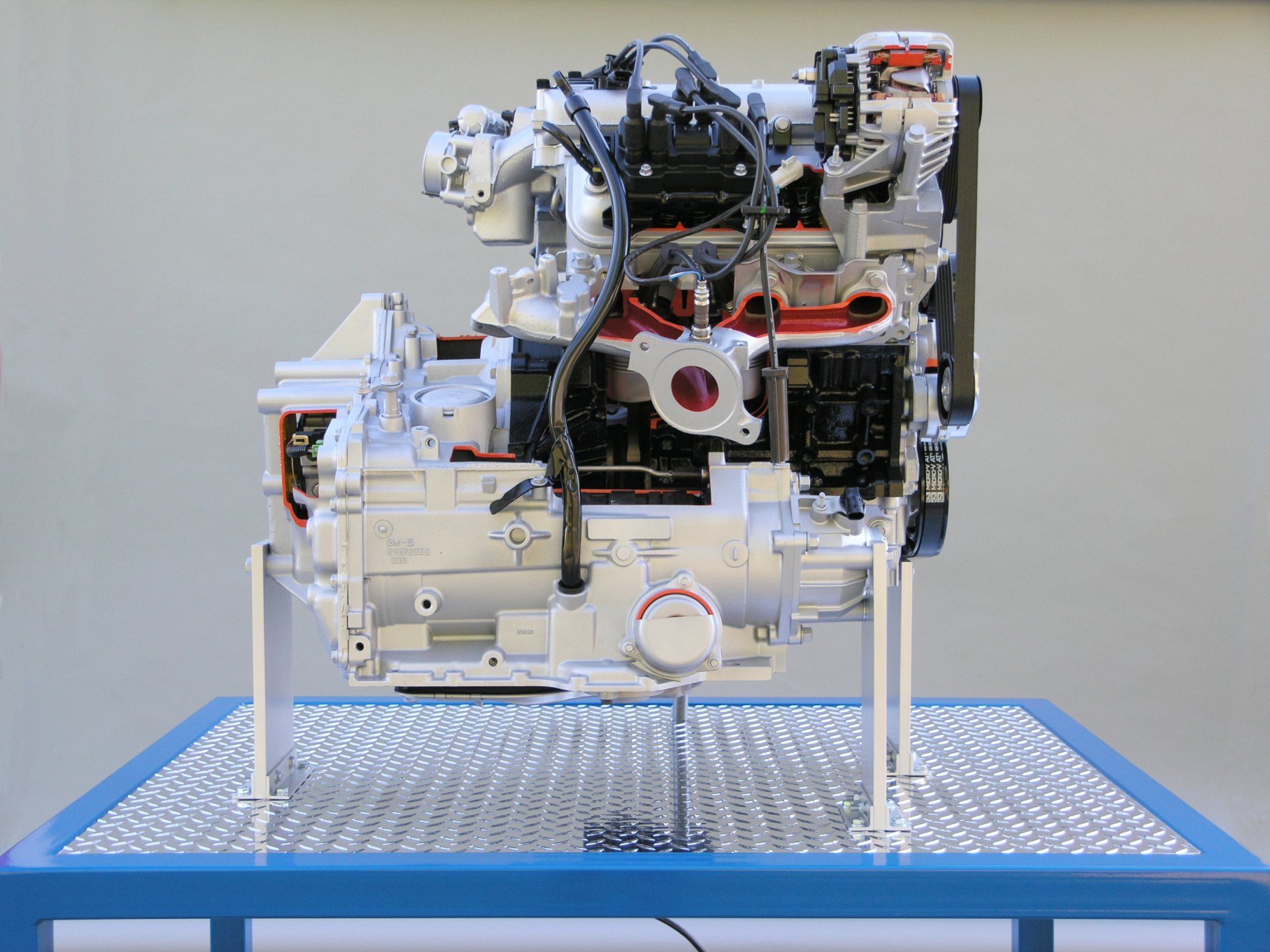

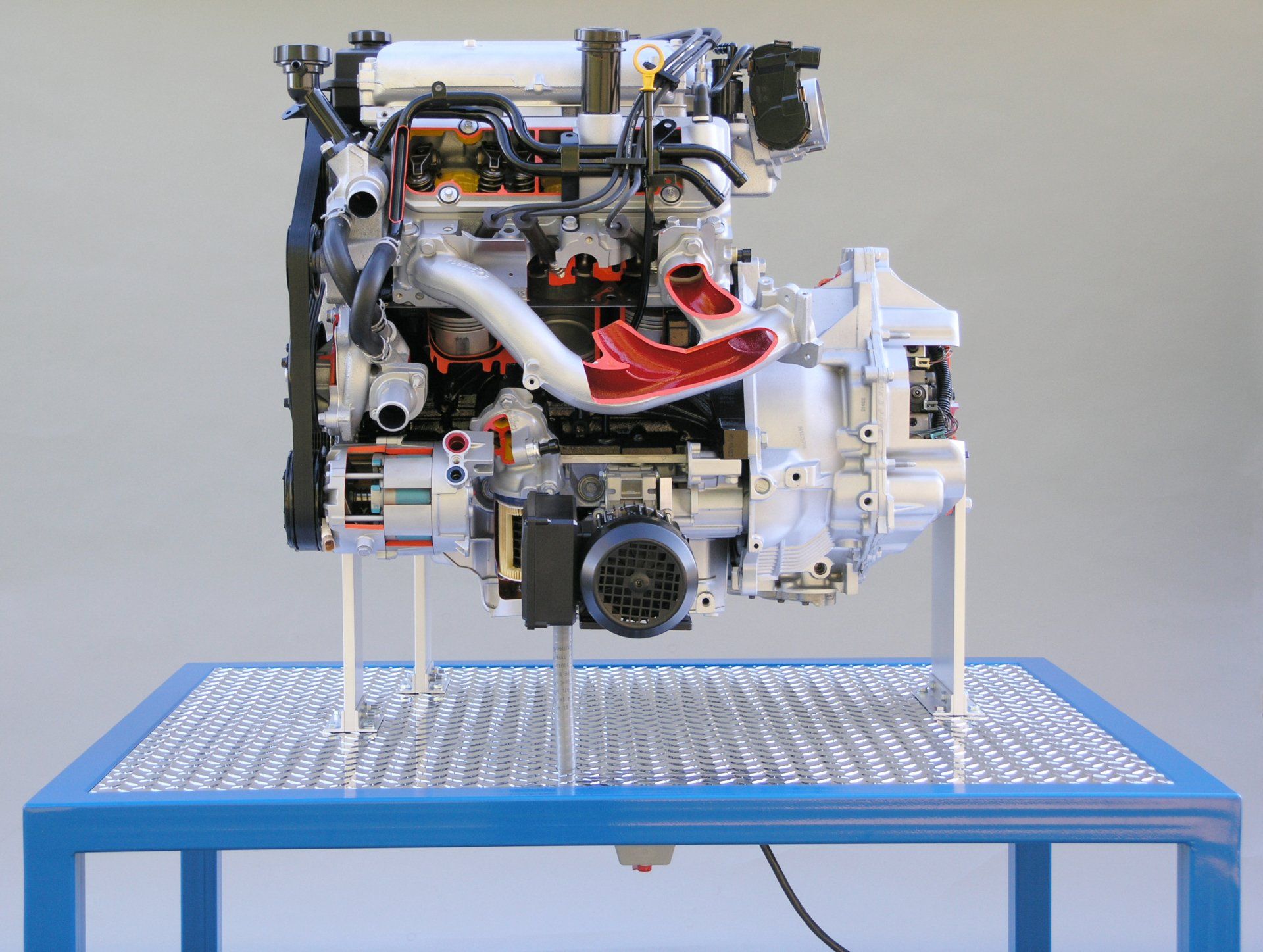

The Engine Cutaway Trainer is a complete late model GM 60º V-6 front-wheel drive engine and transaxle with sections cut away to expose the internal mechanical operating systems. Intake, Exhaust, Cooling, and Lubrication systems are color coded to provide visual cues and allow for easy identification. This training unit includes an electric motor which rotates the engine at a low RPM to show the operation and interaction of the internal working components.

*Images for illustration purpose only. Final product may vary.

Features:

• Engine, Pistons, Rings, Cylinder Walls, Cam Operations, Crank Operations, Timing Chain, Connecting Rods

• Oil Filter, Oil Pick-up, Oil Pump

• Intake Manifold, Exhaust Manifold, EGR, Throttle Body, Fuel Rail

• Coolant System, Water Pump, Power Steering Pump, A/C Compressor

• Intake Valve with Seat, Exhaust Valve with Seat, Valves, Valve Springs, Rocker Arms, Push Rods

• Transaxle and filter, Torque Converter, Flywheel, Clutches, Bands, Band Servos, Shift Interlock, Valve Body, Output Speed Shaft

• VSS Sensor, Ignition

Download PDF Details Cut Sheet
