Electricity and Electronics Programs

Models 1810SC & 1820SC

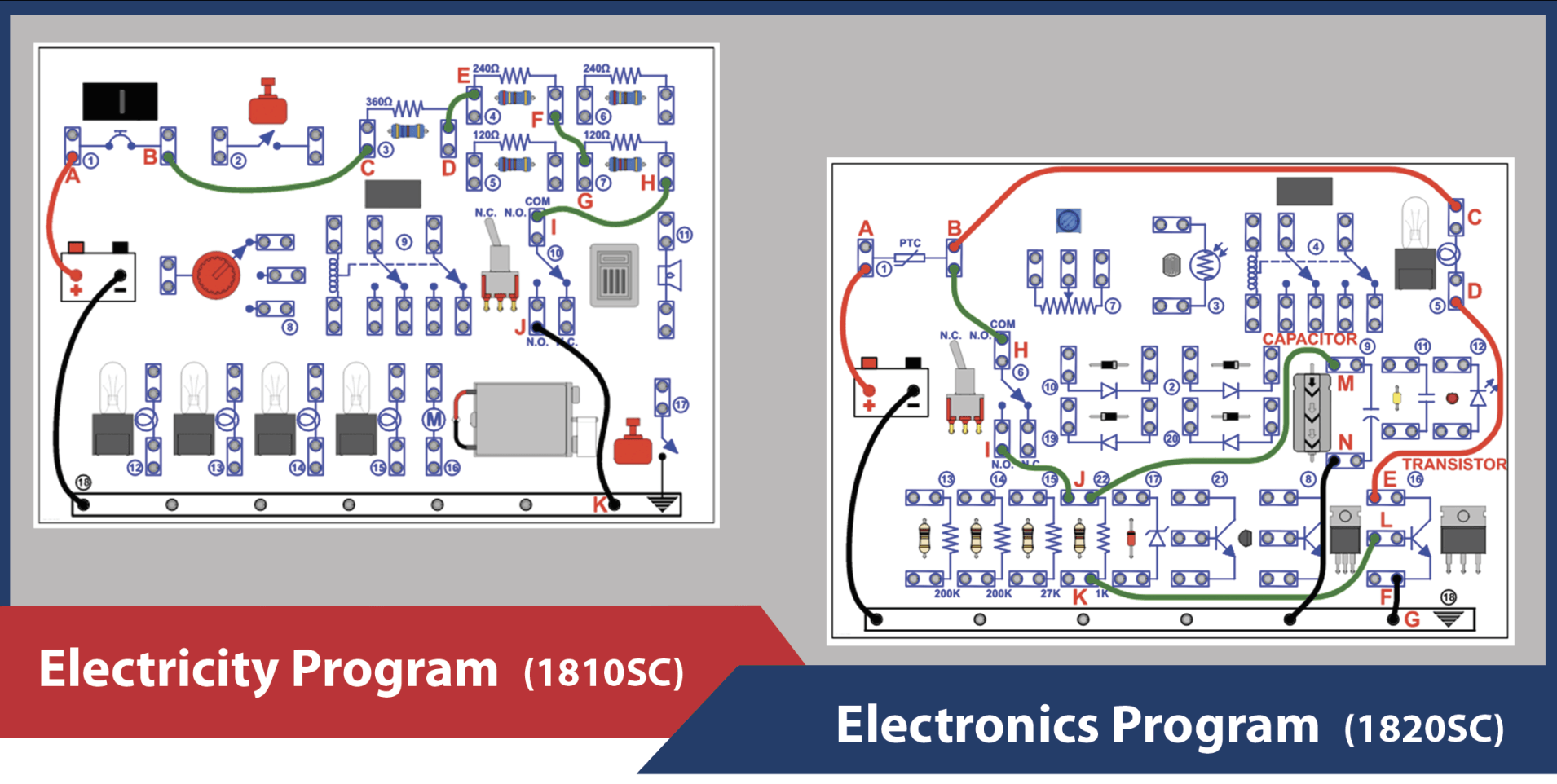

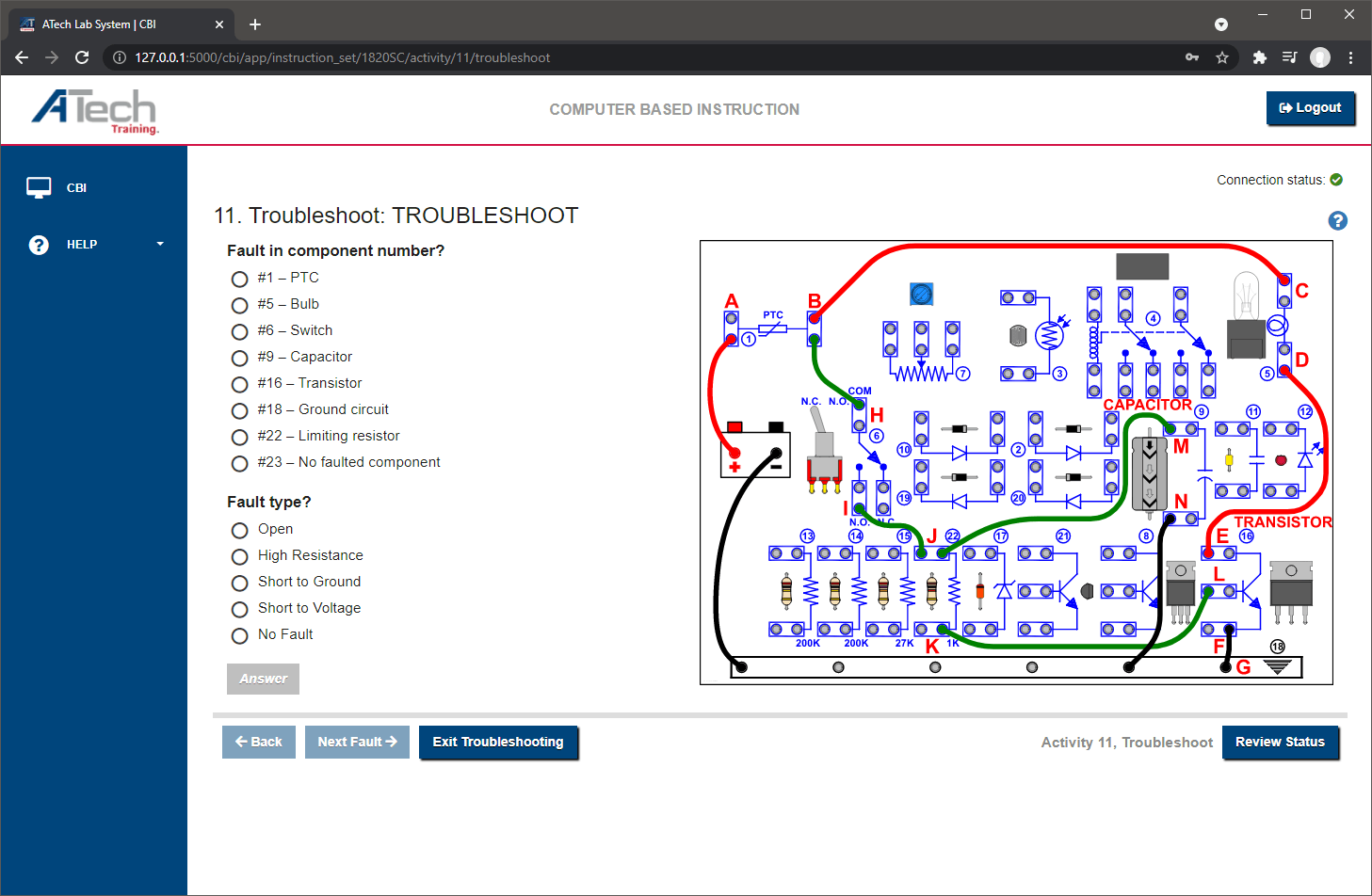

In conjunction with our Electricity Trainer (1810) and the Electronics Trainer (1820) these programs enhance the learning experiences with animations of important concepts. Hands-on activities provide “need-to-know” reinforcement, while computer controlled diagnosis provides trouble - shooting practice and competency testing.

- 20 to 40 hours of instruction.

*Software requires the Electricity and Electronics trainers to work.

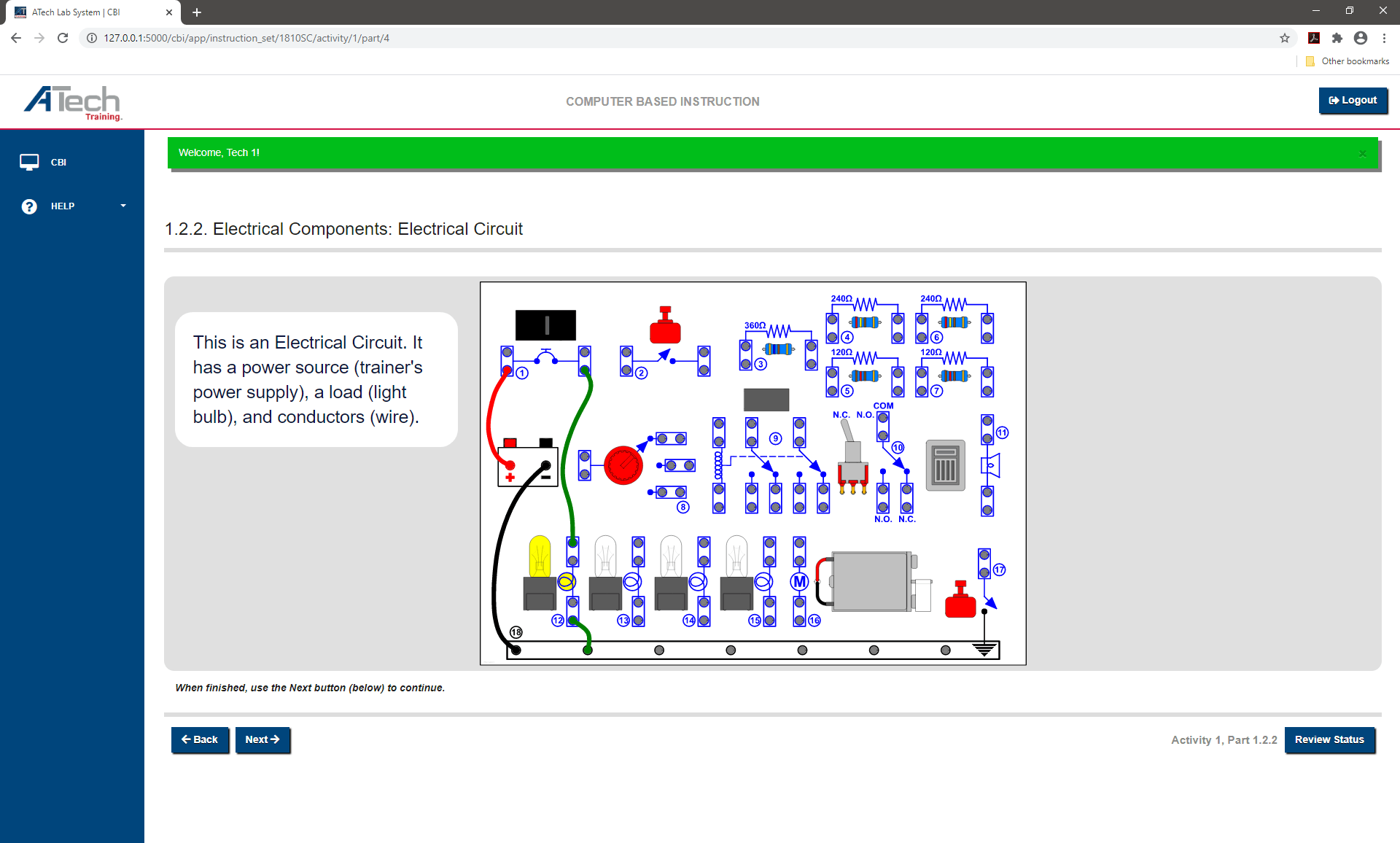

Activity 1 Electrical Components

Activity 2 Voltage, Current, Meter, & Series Circuit

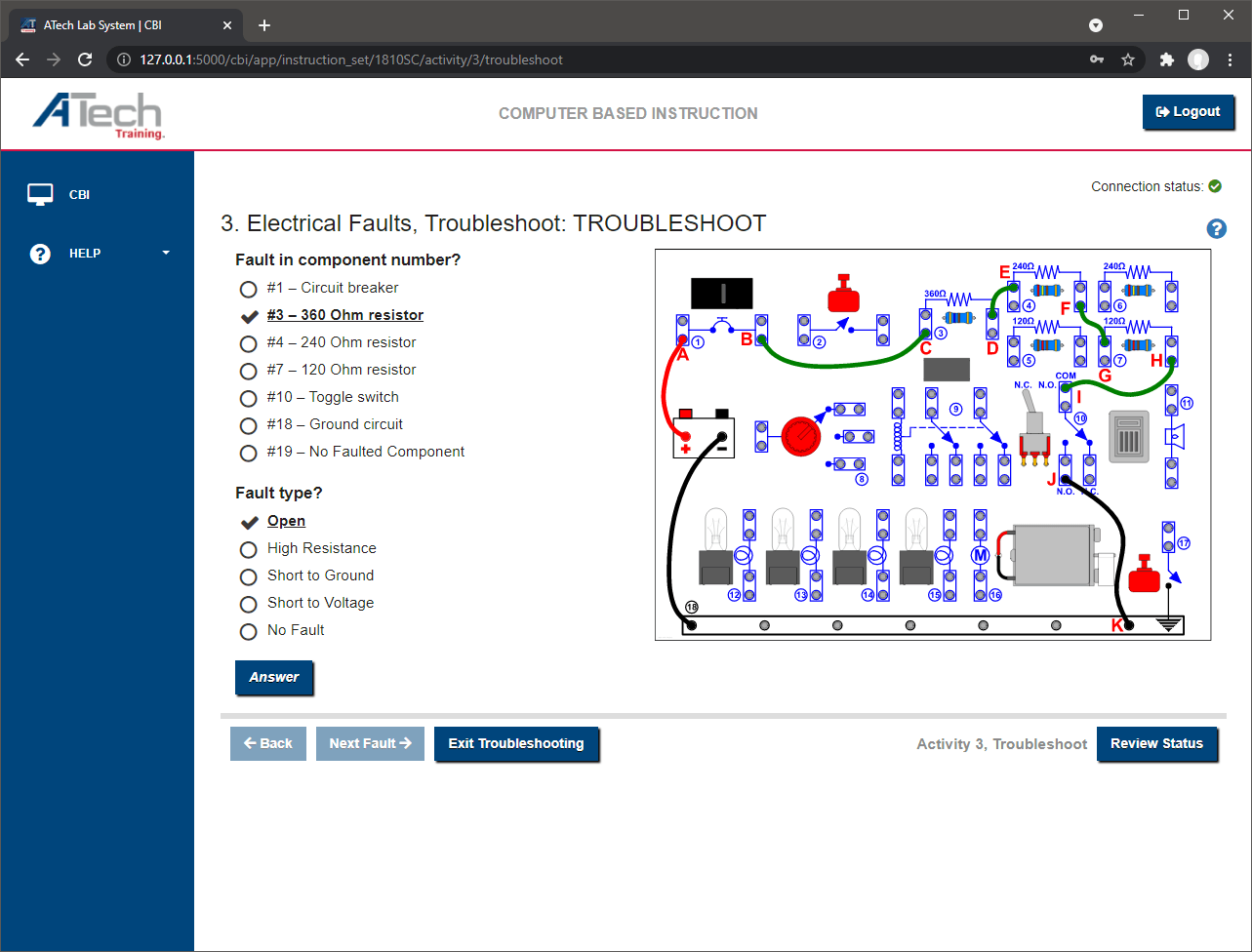

Activity 3 Electrical Faults/Troubleshooting

Activity 4 Ohm's Law & Parallel Circuit

Activity 5 Relay and Circuit, Test Light

Activity 6 Horn Circuit, Relay #2, Jumper

Activity 7 Switches, Circuit Breaker, Short Finder

Activity 8 Tail and Brake Light Circuit

Activity 9 Starter Motor Circuit

Activity 10 Turn Signal Circuit

Activity 11 Ignition Key Warning Circuit

Activity 12 Electric Cooling Fan Circuit

Activity 13 Brake Warning Circuit

Activity 14 Heater Blower Circuit

Activity 15 Headlight Circuit

Activity 16 Dome Light Circuit



Activity 1 Polarity

Activity 2 Digital Multimeter

Activity 3 Diode Fundamentals

Activity 4 Diode as a Rectifier

Activity 5 Light Emitting Diode (LED)

Activity 6 Clamping Diode

Activity 7 Zener Diode

Activity 8 Transistor Basic

Activity 9 Transistor Circuit

Activity 10 Transistor as Amplifier

Activity 11 Capacitors

Activity 12 Photo Resistor

Activity 13 Combination Electronics
