Cutaways have sections of the part cut out in order to expose the internal components. The sectioned parts are painted with different colors to differentiate the various components

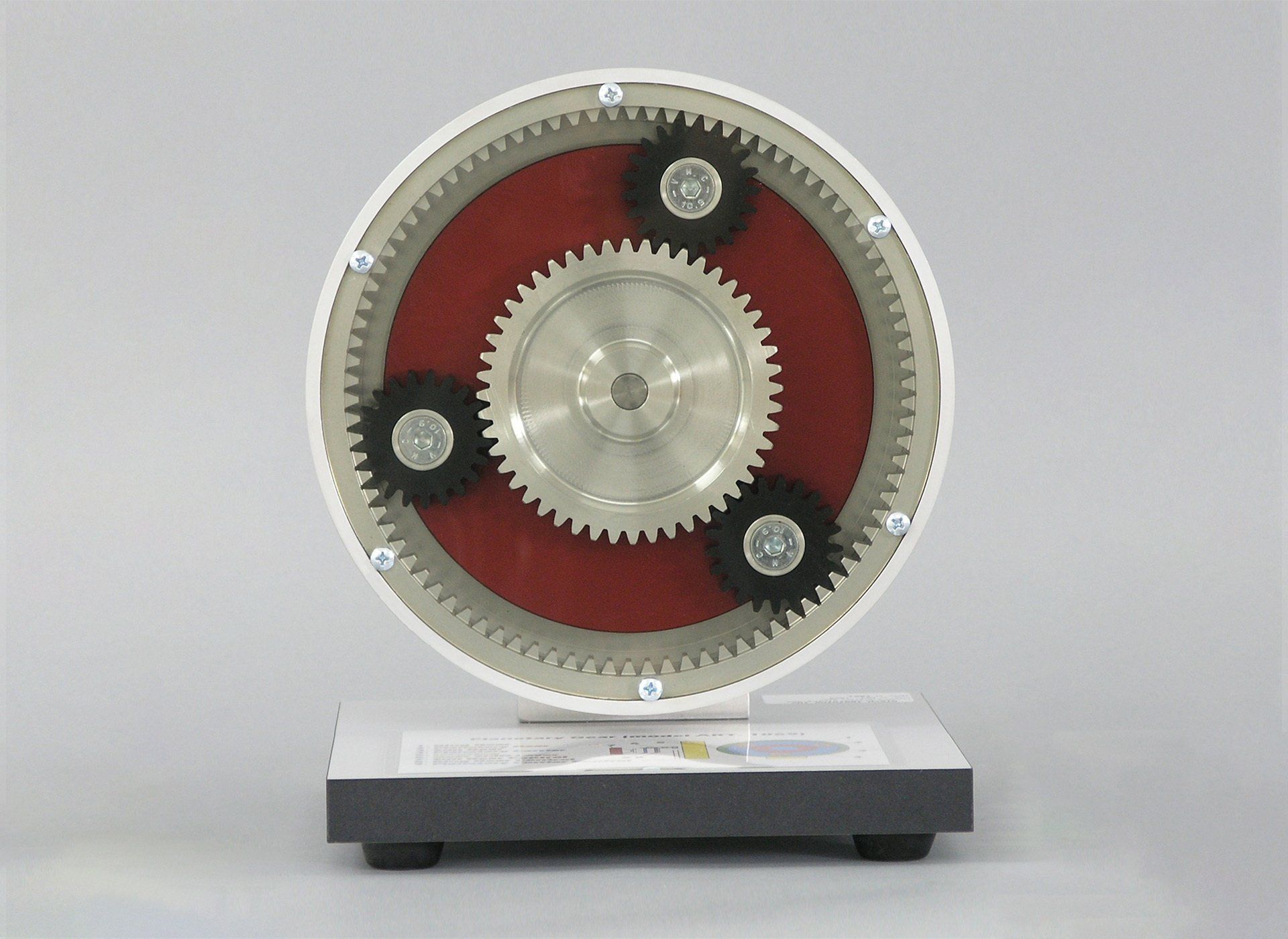

Operating system
of a planetary gear,
and the available ratio possibilities

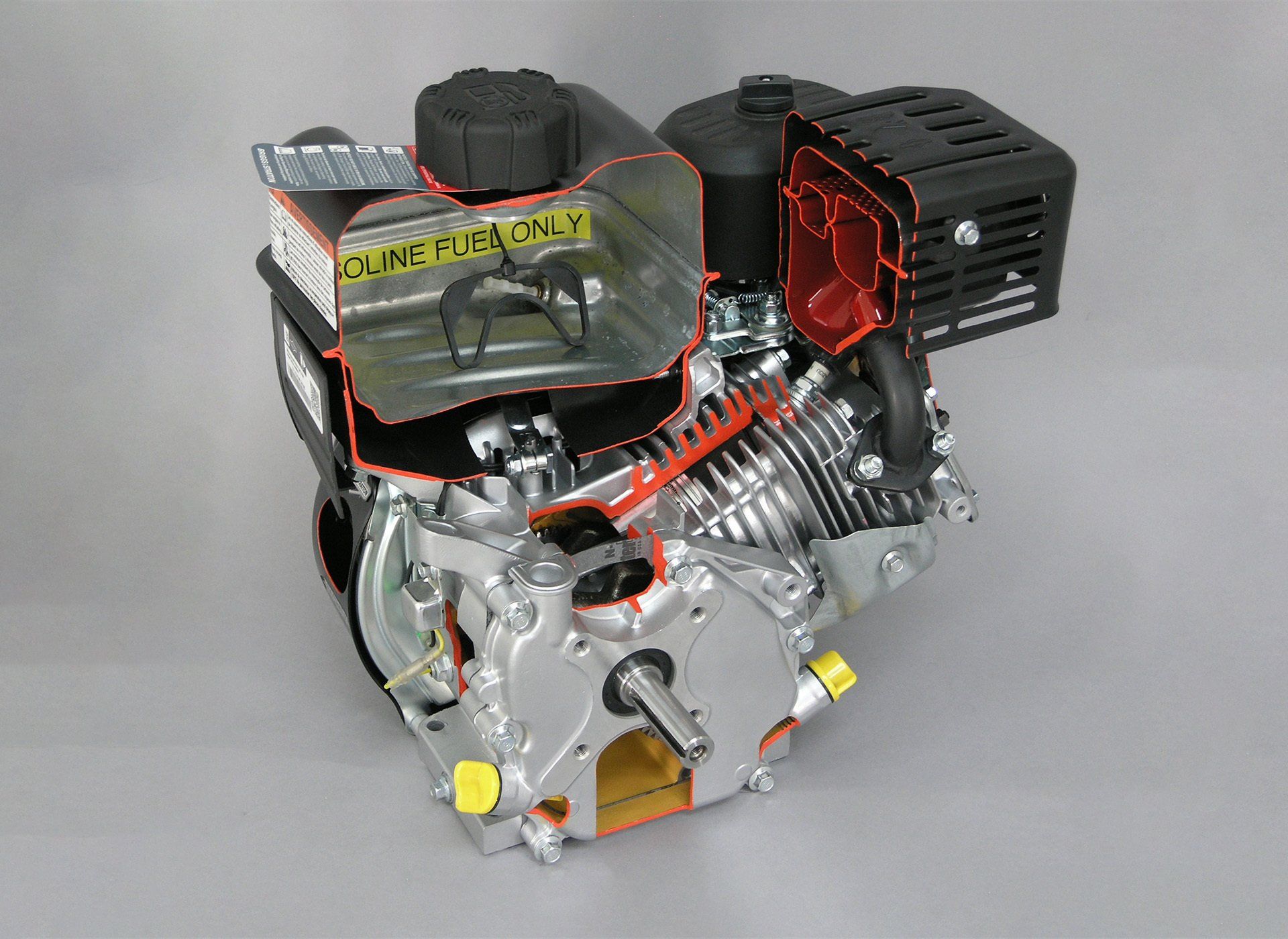

Perform actual service manual diagnostic procedures on a
Briggs & Stratton utility engine

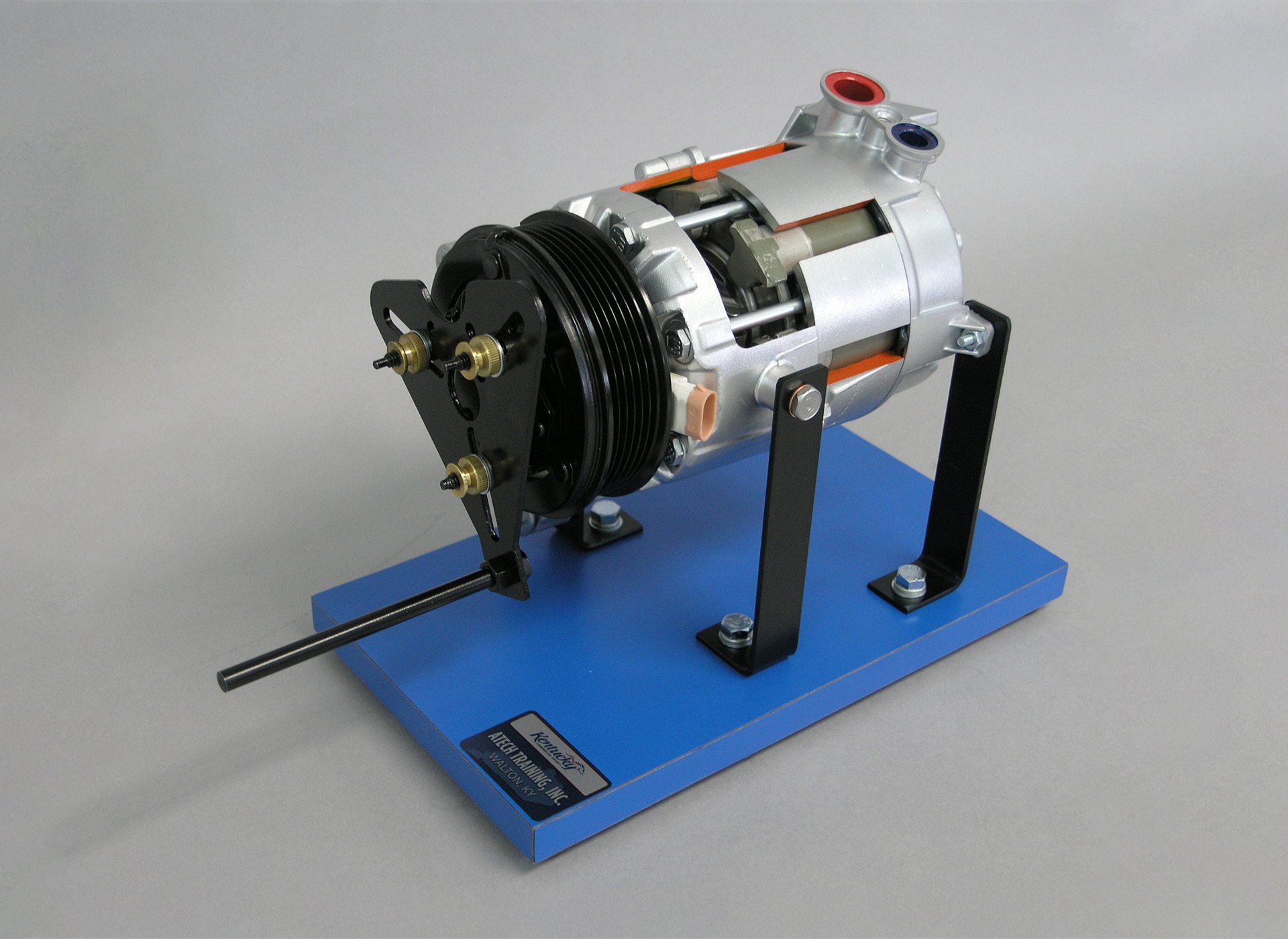

V5 Variable Displacement
A/C Compressor
An actual alternator
that shows internal components,
to demonstrate alternator operation
A complete late model GM 60º V-6
front-wheel drive engine
and transaxle with sections cut away
to expose the internal mechanical
operating systems
A complete Toyota Hybrid I-4 engine and planetary gear
with sections cut away to expose
the internal mechanical
and electrical operating systems
Recycled late-model
manual transaxle
manual transmission
An actual power steering pump that
shows internal components, allowing for demonstration of pulley operation
An actual power rack and pinion that
shows internal components, allowing demonstration of internal components
Complete differential / axle
An actual starter motor
to demonstrate operation
Late-model Transfer Case
Model shows
an accurate cross-section
of the high pressure fuel system
Shows the internal components
of an electronic fuel control
and cold advance injection pump
